Steel Formwork Machinery

Our steel formwork machinery covers key production processes, from U-channel roll forming and automatic punching to grooving, cutting, and welding positioning. Our equipment includes individual machines and an automatic U-plate production line integrating cold forming, cutting, turning, punching, and automatic stacking.


First 12 Last 1/2


Steel Formwork Machinery for Different Production Processes

Choose equipment according to the steel formwork components and processing operations required in your production.

Equipment Main Processing Function
Steel Formwork U-Plate Automatic Production Line U-plate cold forming, cutting, turning, punching, and automatic stacking
U-Channel Roll Forming Machine Continuous roll forming of steel U-channels
Automatic Punching Machine Side-hole and tie-rod-hole punching on U-shaped steel formwork
Single-Side Multi-Head Grooving Machine Simultaneous grooving at 1–6 positions
Double-Side Multi-Head Grooving Machine Simultaneous grooving at 1–12 positions
Automatic Feeding Cut-Off Machine Automatic material feeding and cutting
End Plate Forming Machine Roll forming of steel formwork end plates

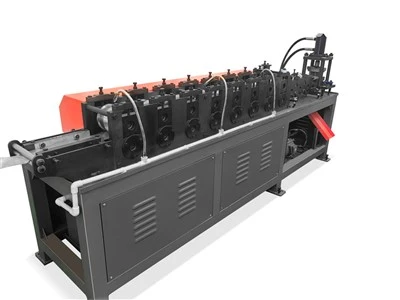

Triangular Stiffener Roll Forming Machine Forming triangular steel stiffeners

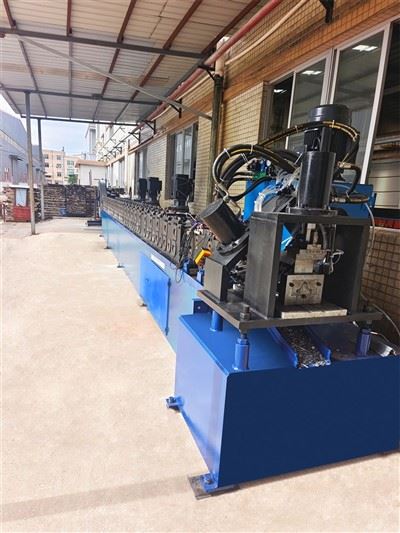

Steel Formwork Angle Steel Forming Machine Angle steel forming

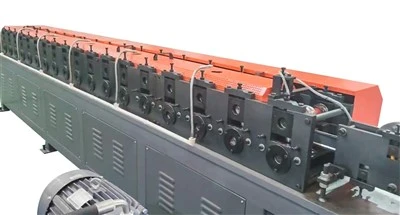

Horizontal Bar Profile Forming Machine Forming horizontal bar profiles
Steel Formwork Welding Positioning Table Positioning and clamping U-shaped steel formwork for welding

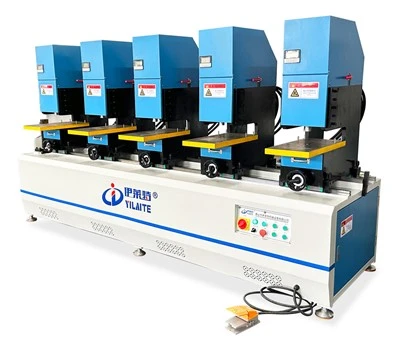

Tie Rod Hole Punching Machine Dedicated tie-rod-hole punching

Steel Formwork U-Plate Production and Processing

The automatic U-plate production line combines cold forming, cutting, turning, punching, and automatic stacking. For standard 2.7 m boards, the stated production cycle is approximately 20 seconds without tie-rod holes and 30 seconds with tie-rod holes. The line is designed for one operator, with the manufacturer stating a potential saving of 2–3 workers.

The automatic punching machine handles U-shaped steel formwork with the following specifications:

Parameter Specification
Workpiece width 100–500 mm
Workpiece length 500–2950 mm
Processing Side-hole and tie-rod-hole punching
Standard 2.7 m board cycle Approx. 20 seconds without tie-rod holes; 30 seconds with tie-rod holes
Main hydraulic motor 15 kW
Servo motors 1.5 kW × 1; 1.0 kW × 2
Automatic feeding unit 4 m
Power supply 380V / 50Hz

The machine includes hydraulic punching units for side holes and tie-rod holes, an automatic clamping and positioning unit, and a hydraulic station. One-button changeover is also provided.

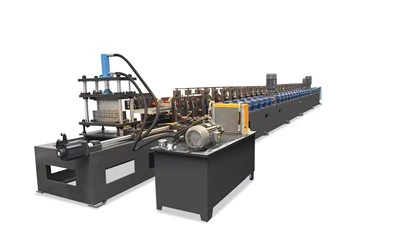

U-Channel Roll Forming Machine Specifications

For continuous U-channel production, the roll forming machine is configured for Q700 high-strength steel coils.

Parameter Specification
Material Q700 high-strength steel coil
Material thickness 1.5 mm
Maximum material width 600 mm
Coil inner diameter 460–520 mm
Loading capacity 10,000 kg
Forming speed 1–15 m/min
Main motor power 30 kW
Forming roller groups 28
Straightening groups 5
Roller material CR12MOV
Roller hardness HRC 58–60
Control system PLC with HMI

The machine uses adjustable length settings and one-button overall width adjustment after the target width is set. Coil loading, initial material feeding, and unloading require manual operation.

Steel Formwork Grooving Machines

Our single-side and double-side multi-head grooving machines are available for different grooving quantities and configurations.

Parameter Single-Side Multi-Head Double-Side Multi-Head
Model YLT-YC-3000/6 YLT-YC-3000/12
Applicable formwork size 100–500 100–500
Grooving quantity 1–6 grooves 1–12 grooves
Nominal pressure 250 kN × 6 250 kN × 12
Groove width 36/40 mm 36/40 mm
Groove depth 1.5–1.8 mm 1.2–1.6 mm
Groove depth customization Available Available
Motor power 15 kW 11 kW
Processing time Approx. 4 seconds per stroke Approx. 8 seconds for both sides

For the double-side machine, the maximum distance between the first and last grooves is 2700 mm. The stated processing time excludes approximately 30 seconds for manual feeding and handling, depending on operator experience.

Welding Positioning and Automatic Cutting

Steel Formwork Welding Positioning Table

The welding positioning table accommodates U-shaped steel formwork with lengths of 300–2850 mm and widths of 100–400 mm.

Parameter Specification
Model YLT-400-2850
Worktable dimensions 3300 × 670 mm
Worktable height 750 mm
Swing arms 10, freely combinable
Clamping cylinders More than 40, with some individually controlled
Working pressure 0.5–0.8 MPa
Equipment weight Approx. 800 kg

The positioning table can be used for robotic or manual welding. For formwork shorter than 1350 mm, two pieces can be clamped simultaneously.

Automatic Feeding Cut-Off Machine

This machine is designed for 100–400 U-shaped steel formwork.

Parameter Specification
Maximum feeding length 6 m
Reference cycle time Approx. 3 seconds
Servo motor power 1.5 kW
Hydraulic motor power 7.5 kW
Power supply 380V / 50Hz

The operating sequence includes parameter setting, manual initial feeding, automatic servo feeding, cutting, unloading, and product collection.

Other Steel Formwork Forming Equipment

We also supply dedicated forming equipment for steel formwork components.

Equipment Available Specifications
End Plate Forming Machine Galvanized coil, 2.0 mm thickness; forming speed 1–12 m/min; 14 forming groups and 1 straightening group; CR12MOV forming rollers; 11 kW main motor
Triangular Stiffener Roll Forming Machine High-strength galvanized coil, 1.0 mm thickness and 200 mm material width; forming speed 0–12 m/min, excluding cutting; 8 forming groups and 5 straightening groups; 5.5 kW main motor

Production dimensions for these two machines can be determined according to customer drawings.

Customization and Equipment Configuration

Customization is available for selected steel formwork machinery, with confirmed options including:

Manufacturing and Technical Support

We integrate equipment research and development, design, manufacturing, sales, and service. Our company reports cooperation with more than 700 customers across China and a service network covering over 20 Chinese provinces, with products exported to multiple countries and regions.

Our support includes:

Request a Steel Formwork Machinery Quotation

Send us your steel formwork product dimensions, material specifications, drawings, or sample photos. You can also provide the processing operations and estimated order quantity you need.

We will review the available equipment options and help you identify suitable machinery configurations for your steel formwork production.

Foshan Yilaite Machinery Equipment Co., Ltd. is one of the most reliable steel formwork machinery manufacturers and suppliers in China, featured by quality products and good service. Please rest assured to buy CE approved steel formwork machinery from our factory. We also accept customized orders.
