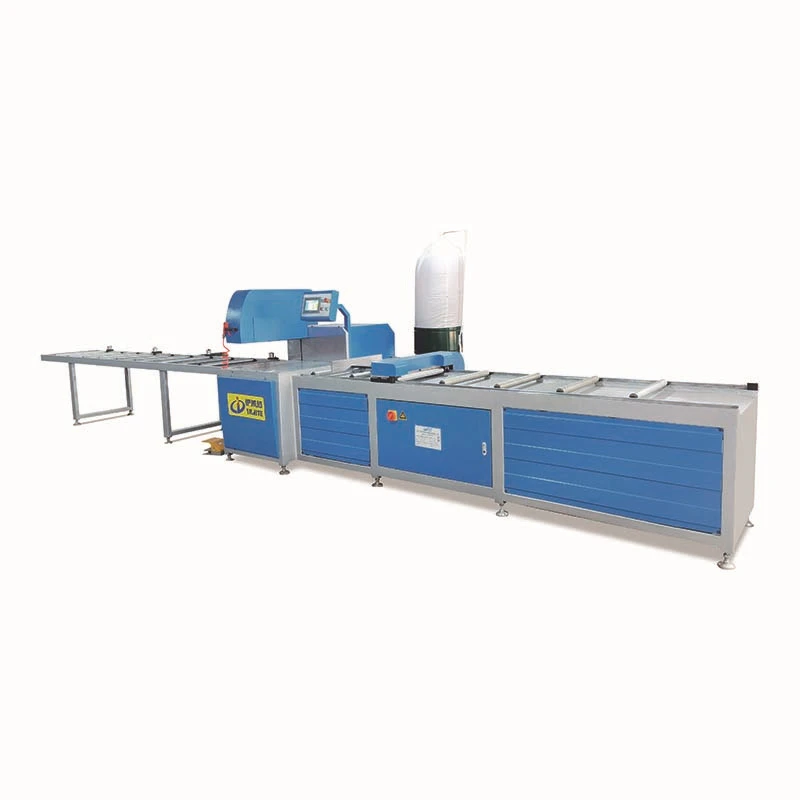

CNC Cut-to-lenght Cuting Machine
Specially designed direct-drive 5.8KW motor, eliminating the need for belt drive. Swedish SKF bearings.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of cnc cut-to-lenght cuting machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced cnc cut-to-lenght cuting machine from our factory.
Specially designed direct-drive 5.8KW motor, eliminating the need for belt drive. Swedish SKF bearings.
Imported Haupt 600 saw blade.
Panasonic CNC system (Japan), Hokkaido and Lydia high-speed train-specific servo motors with anti-aluminum chip conductivity function.
Silent hydraulic feed system.
Schneider low-voltage electrical components.
Motor with 3C or CE certification.
Product Advantages and Features
Sawable product thickness: 4-10 mm.
Saw width * height: 400*200mm/600*80mm.
3.2-meter CNC positioning frame and 4-meter material support frame, with a double-cylinder pressing device and aluminum chip guard as required.
Employs a silent hydraulic feed system with a reverse buffer valve for smoother cutting.
Includes aluminum chip dust collection device (specially added configuration).
Specially configured length deviation alarm system, length positioning accuracy ±0.1mm.
Includes automatic cooling circulation device.
Includes automatic guide rail lubrication device.
Main technical parameters
|
No. |
Parameter |
Specification |
|
1 |
Cutting Length |
180-3100mm (CNC Positioning) |
|
2 |
Cutting Width × Height (b×h) |
400×200 / 600×80mm |
|
3 |
Main Motor Power |
5.8kW (Direct-coupled Motor) |
|
4 |
Main Motor Speed |
2850r/min |
|
5 |
Saw Blade Size |
Φ600 × Φ30 × 120T |
|
6 |
Saw Blade Feed Speed |
0-3m/min |
|
7 |
Saw Blade Return Speed |
2-3m/min |
|
8 |
Working Air Pressure |
0.6-0.8MPa |
|
9 |
Working Voltage |
380V |
|
10 |
Overall Dimensions (L×W×H) |
8000×1950×1500mm |
|
11 |
Machine Weight |
1600kg |
|
12 |
Cutting Cylinder Stroke |
700mm |
