Architectural Aluminum Template Robot Welding Workstation
Equipment composition: this set of equipment is a robot welding workstation specially designed for building aluminum formwork, which consists of welding robot, welding power supply, workpiece positioning workbench, fixture, electrical control and other parts.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of architectural aluminum template robot welding workstation in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced architectural aluminum template robot welding workstation from our factory.
Equipment composition: this set of equipment is a robot welding workstation specially designed for building aluminum formwork, which consists of welding robot, welding power supply, workpiece positioning workbench, fixture, electrical control and other parts.
Robot installation: In this scheme, the workpiece is positioned and installed on the workbench, so that the maximum working radius of the robot can reach the weld and meet the welding posture to ensure the weld forming effect.

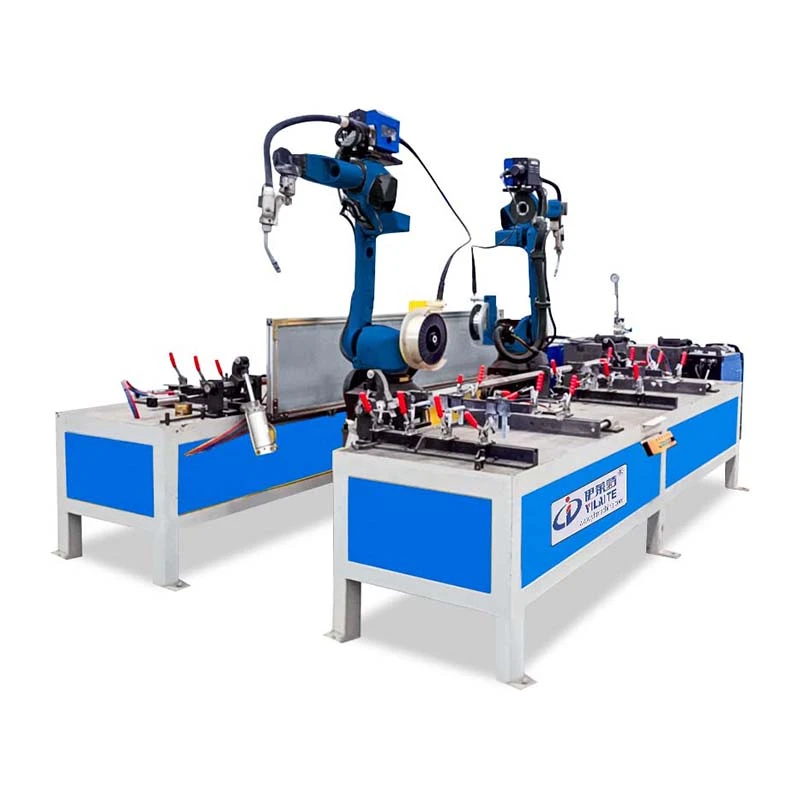

Overall layout of the workstation: as shown in the figure, the equipment is suitable for circular welding production of two workstations. The double robots are placed in the middle position, and a workpiece positioning workbench (that is, two stations) is placed on the left and right. Each workbench can place one or two workpieces according to the length of the workpieces. After welding a group of workpieces, the first axis of the robot rotates, which makes the robot run alternately between two stations, and the welding does not affect the loading and unloading
of the workpieces at the other station. The robot control cabinet and welding power supply are placed behind the installation platform, which is convenient for operation and equipment maintenance. The workpiece is placed horizontally and fixed, and the robot arm holds the MIG welding gun to move to complete the welding of the workpiece weld.
Workpiece fixture: pneumatic tilting universal multi-rib positioning fixture is adopted. The workpiece is placed on the positioning platform, and the workpiece is restrained and positioned by the fixture, and the workpiece is pressed tightly to ensure the continuous welding of the workpiece. The workpiece fixture adopts pneumatic tilting type independent positioning structure; It can be moved and locked in both vertical and horizontal directions to facilitate the adjustment of workpieces with different specifications.
Scope and overall accuracy of applicable workpiece of equipment Maximum dimension of workpiece (length× width): 3200× 600 mm.
The repeatability of the whole equipment is less than ±0.10mm.
Equipment production rhythm: the workpiece on the unilateral positioning platform is welded: about 4-8 minutes/piece (actually determined according to the weld circumference).
Welding speed: 700mm/min.
