Aluminum Formwork Machinery

Aluminum Formwork Machinery for Cutting, Punching and Milling

Foshan Yilaite Machinery Equipment Co., Ltd. is an aluminum formwork machinery manufacturer offering equipment for cutting, punching, slot milling and automated production. Our equipment range includes individual processing machines and integrated production lines for aluminum formwork components.

For manufacturers processing U-shaped panels, C-channels, floor panels, wall panels and related aluminum formwork components, we offer equipment with defined processing ranges and configurations. Our automatic aluminum formwork production line handles workpiece widths of 100–500 mm and lengths of 500–2750 mm, with a stated production cycle of 30 seconds per piece.


First 12 Last 1/2


Aluminum Formwork Machinery and Processing Capabilities

Different aluminum formwork machines handle different stages of aluminum formwork production.

Machine Type Processing Applications

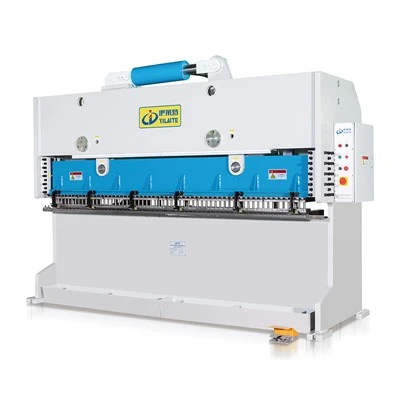

Hydraulic Large Row Punch Punching floor panels, wall panels, internal corners, keels and angle aluminum

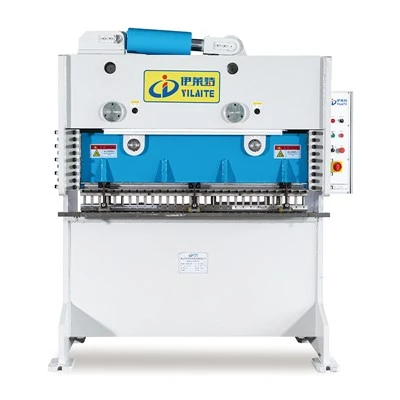

Hydraulic Small Row Punch Punching aluminum formwork components, including U50 panels
Three-Hole Hydraulic Punch Punching welded U-shaped panels and C-channels
Single-Head Hydraulic Punch Punching welded U-shaped panels and C-channels; modifying holes in used formwork
CNC Cut-to-Length Saw CNC positioning and cutting of aluminum formwork profiles
Manual Push-Type Cutting Machine Multi-angle cutting of large-section profiles
CNC Dual-Head End Milling Machine Milling reinforcement ribs at both ends of aluminum formwork inner sealing plates

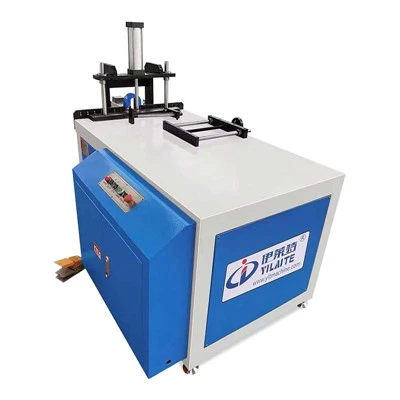

Single-Axis Slot Milling Machine Milling slots in U-shaped panels, C-channels and existing formwork tie systems
CNC 8-Axis Slot Milling Machine Multi-position slot milling with automatic workpiece turning
Automatic Production Line Automatic feeding, sawing, punching, slot milling and turning of aluminum formwork U-shaped panels

Machine Selection and Technical Specifications

Hydraulic Punching Machines

Our aluminum formwork hydraulic punching machines cover different punching requirements, from multiple-hole processing to single-hole operations.

Specification Hydraulic Large Row Punch Hydraulic Small Row Punch
Model YLT-150T-60 YLT-80T-30
Nominal pressure 1500 kN 800 kN
Slide stroke 90 mm 80 mm
Worktable length 3250 mm 1700 mm
Punching diameter 16.5 mm 16.5 mm
Punching spacing 50 mm and multiples 50 mm and multiples
Punch quantity 1–60 1–30
Single punching cycle Approx. 4 seconds Approx. 4 seconds
Motor power 18.5 kW 11 kW
Voltage 380 V 380 V
Machine weight Approx. 8,000 kg Approx. 4,300 kg
Overall dimensions 3600×1300×2550 mm 2030×1200×2300 mm

Both machines are equipped with safety protection systems. The large row punch allows punch spacing to be changed without removing the punches.

Three-Hole and Single-Head Hydraulic Punching Machines

These aluminum formwork punching machines are designed for punching welded U-shaped panels and C-channels.

Specification Three-Hole Hydraulic Punch Single-Head Hydraulic Punch
Model YLT-12T-3 YLT-10T-1
Nominal pressure 120 kN 100 kN
Punching diameter 16.5 mm, customizable 16.5 mm, customizable
Punching stroke 35 mm 20 mm
U-shaped panel range 50–600 mm 50–600 mm
C-channel range 100×100 to 150×200 mm 100×100 to 150×200 mm
Punching position 50 mm 50 mm
Motor power 4 kW 3.75 kW
Voltage 380 V 380 V
Machine weight Approx. 420 kg Approx. 240 kg

The three-hole machine can punch 1–3 holes simultaneously. It includes double-end and side support racks.

The single-head machine performs individual punching operations and can also be used to modify holes in existing aluminum formwork.

CNC Cutting Machines

Our aluminum formwork cutting equipment covers CNC length positioning and manual multi-angle cutting.

Specification CNC Cut-to-Length Saw Manual Push-Type Cutting Machine
Maximum cutting section 400×200 mm or 600×80 mm 560×210 mm
Processing thickness 4–10 mm —
CNC cutting length 180–3100 mm —
Positioning accuracy ±0.1 mm —
Worktable size — 1860×960 mm
Saw blade Φ600×Φ30×120T —
Vertical saw blade adjustment height — 210 mm
Fence angle — -15° to 90° to +15°
Main motor power 5.8 kW 4 kW
Working air pressure 0.6–0.8 MPa 0.6–0.8 MPa
Machine weight 1600 kg 700 kg

The CNC saw includes a hydraulic feeding system, automatic cooling circulation and automatic guide rail lubrication. An aluminum chip dust extraction device is an additional configuration rather than standard equipment.

The manual push-type machine is designed for large-section profiles and multi-angle cutting.

Milling Machines

We offer aluminum formwork end milling and slot milling equipment for different processing requirements.

Specification CNC Dual-Head End Milling Machine Single-Axis Slot Milling Machine
Processing application Reinforcement ribs at both ends of inner sealing plates Slots in U-shaped panels, C-channels and existing tie systems
Processing width 200–600 mm —
Processing length 400–3000 mm 350–3200 mm
Maximum rib milling height 65 mm —
Slot width — 36, 38 or 40 mm
Slot depth — ≤10 mm ±0.2 mm
Milling travel 0–300 mm 120 mm
Spindle diameter Φ30 mm —
Milling cutter Φ120 mm, optional —
Total power 8 kW 2.2 kW
Voltage 380 V / 50 Hz 380 V / 415 V

The CNC dual-head end milling machine processes both ends of the workpiece. Its Φ120 mm milling cutter is optional.

The single-axis machine processes one slot at a time, with adjustable slot width and depth.

CNC 8-Axis Slot Milling Machine

For multi-position slot milling, our CNC 8-axis aluminum formwork slot milling machine provides up to eight milling heads and automatic workpiece turning.

Specification Value
Milling heads 8
U-shaped panel width 100–600 mm
C-channel range 100×100 to 150×200 mm
Slot width 36, 38 or 40 mm
Slot depth ≤5 mm ±0.2 mm
Maximum processing length 3200 mm
Milling travel 300 mm
Processing efficiency 2 panels, double-sided processing / 40 seconds
Total power 22 kW
Voltage 380 V / 415 V
Machine weight 3200 kg

The machine can hold two U-shaped panels or C-channels back-to-back and use 1–8 milling heads for processing. After machining one side, it automatically turns the workpieces to process the other side.

Positioning can be performed using end positioning or center-hole positioning. The machine supports both pre-welding and post-welding processing.

Automatic Aluminum Formwork Production Line

Our automatic aluminum formwork production line integrates several processing operations into one workflow.

Processing sequence:

  • Automatic feeding
  • Automatic sawing
  • Automatic punching
  • Automatic slot milling
  • Automatic turning

The production line is designed for aluminum formwork U-shaped panels with the following specifications:

Specification Value
Workpiece width 100–500 mm
Workpiece length 500–2750 mm
Production cycle 30 seconds per piece
Processing operations Feeding, sawing, punching, slot milling and turning

Products are transferred between processing stages without manual handling. The manufacturer states that this production arrangement can save 5–7 workers compared with traditional processing methods.

The stated production cycle applies to the published production line information and should be evaluated against the actual workpiece and production conditions.

Equipment Configuration and Customization

We provide selected configuration and adjustment options for different aluminum formwork processing requirements.

Equipment Available Options or Adjustments
Three-Hole Hydraulic Punch Customizable punching diameter
Single-Head Hydraulic Punch Customizable punching diameter
CNC Dual-Head End Milling Machine Optional Φ120 mm milling cutter
CNC Cut-to-Length Saw Additional aluminum chip dust extraction device; double-cylinder pressing and aluminum chip protection configurations according to requirements
Single-Axis Slot Milling Machine Adjustable slot width and depth
CNC 8-Axis Slot Milling Machine Selection of 1–8 milling heads; adjustable milling positions and depth; end or center-hole positioning

For equipment selection and configuration, we can evaluate the workpiece dimensions, hole positions, slot requirements and processing sequence to identify suitable machinery and available options.

Why Source Aluminum Formwork Machinery from Yilaite?

Foshan Yilaite Machinery Equipment Co., Ltd. integrates equipment research and development, design, manufacturing, sales and service.

Our product portfolio covers aluminum formwork machinery, steel formwork machinery, customized equipment, automated production lines and supporting metal molds.

Our manufacturing and service capabilities include:

  • Equipment development and manufacturing: In-house R&D, equipment design and production capabilities.
  • Supporting equipment: Machinery and metal molds for different formwork manufacturing processes.
  • Production management: Digital management of production planning, progress and quality information.
  • Customer experience: The company reports cooperation with more than 700 domestic customers.
  • Service coverage: A service network covering more than 20 provinces in China, with products also exported to overseas markets.
  • After-sales support: Equipment operation training and maintenance services.

These capabilities support equipment sourcing for manufacturers looking for individual aluminum formwork machines or coordinated processing equipment.
