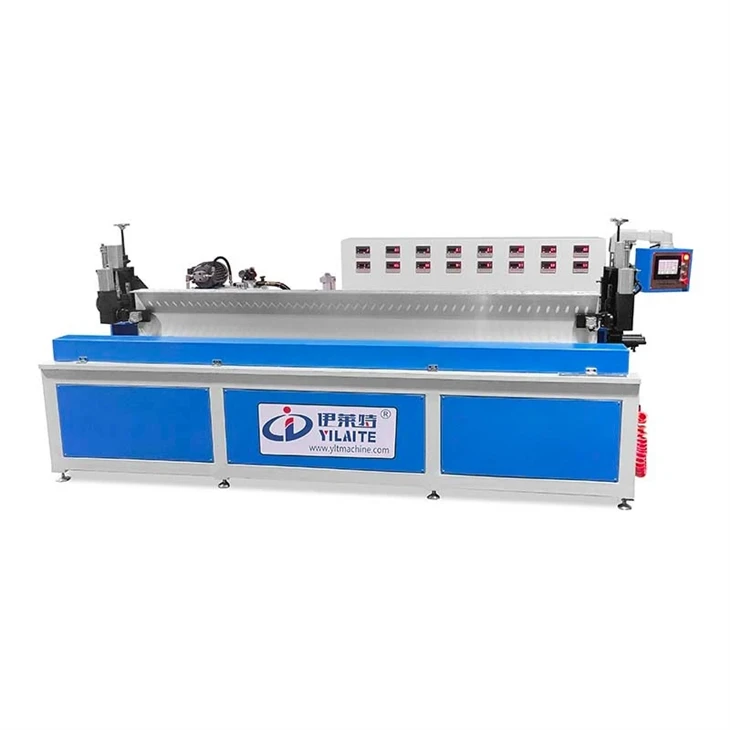

CNC 8 Axis Slot Milling Machine (with Automatic Flip)
This equipment is suitable for milling the slot of U plate and C slot in the fixed position of aluminum template, with automatic turning function (the first in the industry)
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of cnc 8 axis slot milling machine (with automatic flip) in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced cnc 8 axis slot milling machine (with automatic flip) from our factory.
This equipment is suitable for milling the slot of U plate and C slot in the fixed position of aluminum template, with automatic turning function (the first in the industry)
1. Two back-to-back U plates and C slots are clamped at one time, and 1 to 8 heads are freely selected for one-time processing.
1. The milling position and milling depth can be adjusted by digital display, which is convenient to operate.
2. The width specification of U plate is 100 ~ 600mm, and the specification of C slot is 100*100 ~ 150*200mm.
3. The workpiece can be positioned in two forms: end positioning and middle hole positioning.
4. It can meet the pre-welding or post-welding processing of aluminum template, and can also meet the processing of ultra-long plate.
5. Adopt hydraulic cylinder to feed, and the feed speed is stable and adjustable.
6. U plate and strip automatic turning function (the first in the industry), which automatically turns over and mills the other side after milling. Compared with peers, it is more efficient and easier for workers to operate.
Main parameters of equipment
|
NO |
Name |
Numerical value |
|
1 |
Total power |
22KW |
|
2 |
Voltage |
380V/415V |
|
3 |
Number of cutter bits |
8 |
|
4 |
Milling groove width |
36mm,38mm,40mm |
|
5 |
Milling groove depth |
≤5mm± 0.2mm |
|
6 |
Maximum machining length |
L=3200mm |
|
7 |
Milling stroke |
300mm |
|
8 |
Work efficiency |
2 sheet 2 face/40s |
|
9 |
Overall dimension |
L×W×H=3200×1300×1400 |
|
10 |
Equipment weight |
3200kg |
