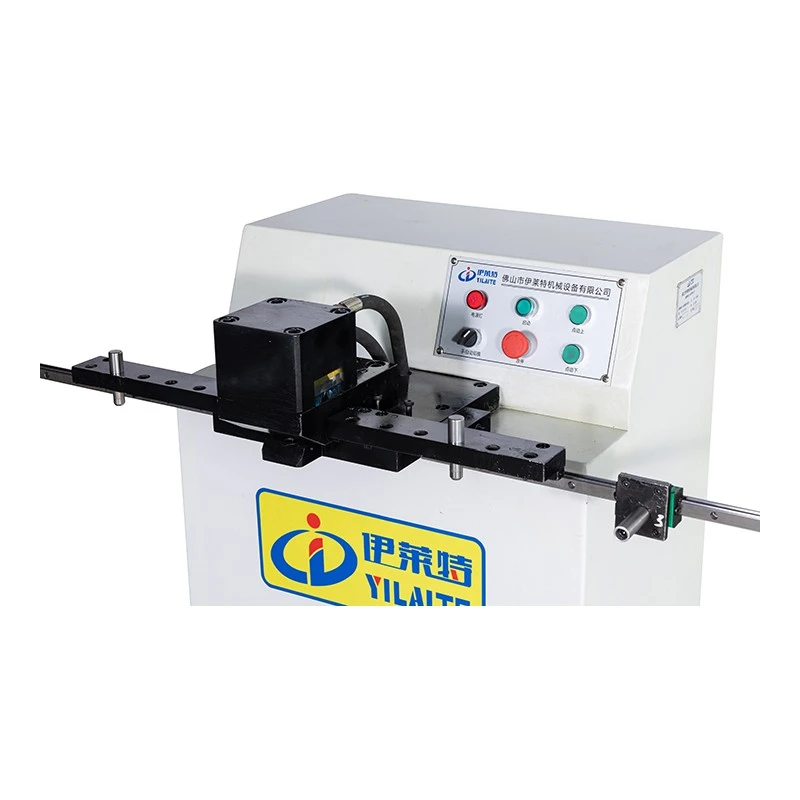

Sigle-Head Hydraulic Punching Machine

This equipment is suitable for punching holes in U-shaped plates and C-grooves of aluminum formwork after welding; a powerful tool for modifying holes in old formwork.

  • Product Introduction

Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of sigle-head hydraulic punching machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced sigle-head hydraulic punching machine from our factory.





Product Advantages and Features

This equipment is suitable for punching holes in U-shaped plates and C-grooves of aluminum formwork after welding; a powerful tool for modifying holes in old formwork.

It can process C-grooves ranging from a minimum of 100*100mm to a maximum of 150*200mm. The processing range for U-shaped plates is 50~600mm.

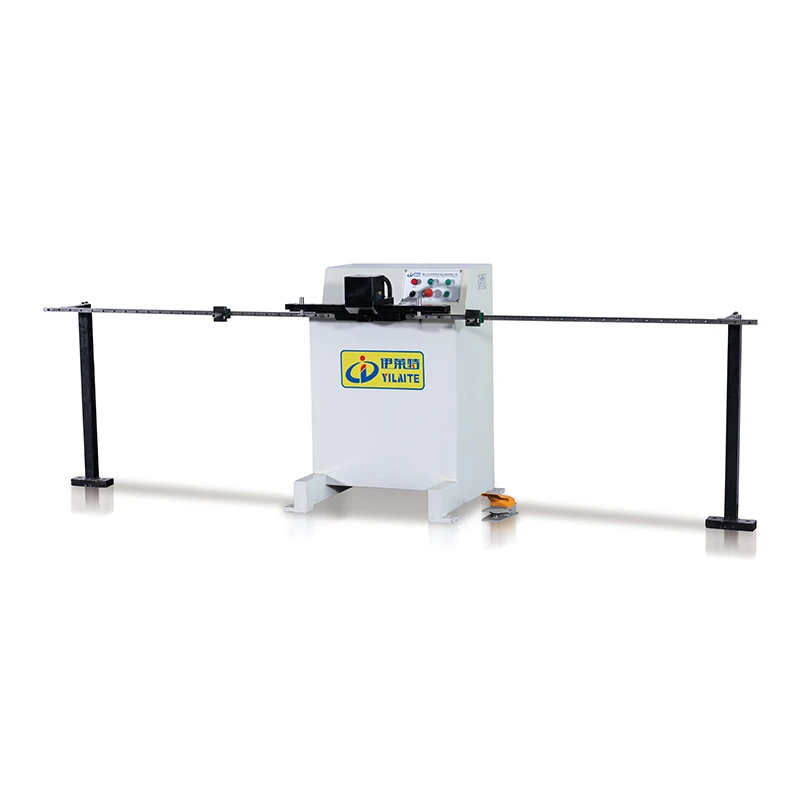

The equipment is equipped with dual-end material supports, 50mm hole spacing positioning, and 50mm fixed-head positioning, making operation flexible and convenient.




Main technical parameters



No.

Parameter

Specification

1

Model

YLT-10T-1

2

Nominal Pressure

100KN

3

Working Voltage

380V

4

Motor Power

3.75kW

5

Punching Stroke

20mm

6

Punching Diameter

16.5mm (Customizable)

7

Die Surface Height from Floor

875mm

8

Overall Dimensions (LWH)

8007401060mm

9

Machine Weight

Approx. 240kg
