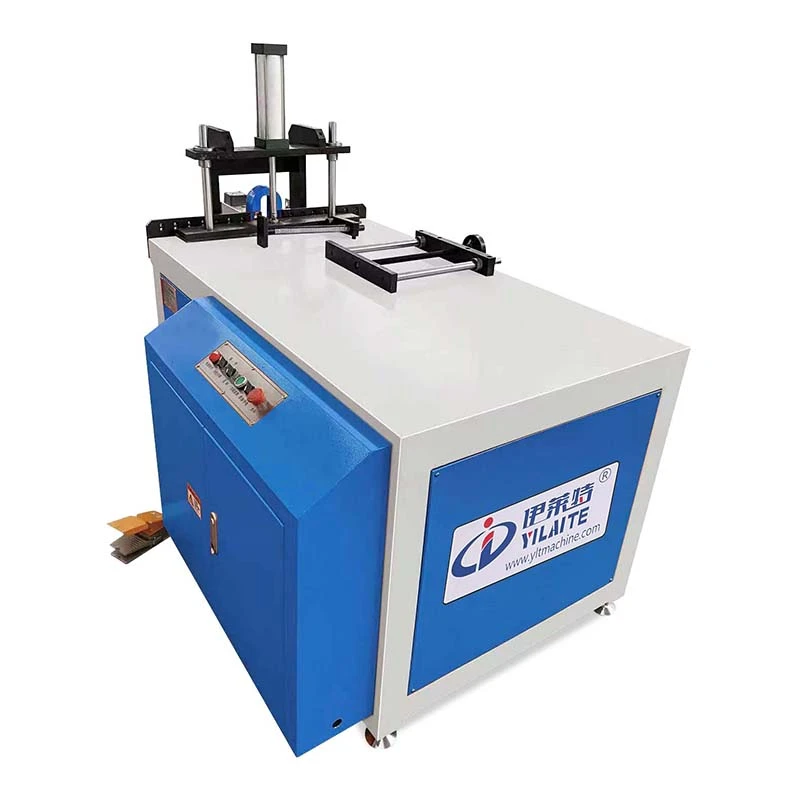

Single-axis Slot Milling Machine
This machine is only mainly used for milling grooves of various materials in the pull-tab system of building aluminum formwork, which is convenient for reforming the old formwork grooves.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of single-axis slot milling machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced single-axis slot milling machine from our factory.
1. This machine is only mainly used for milling grooves of various materials in the pull-tab system of building aluminum formwork, which is convenient for reforming the old formwork grooves.
2. Mainly used for milling U plate and C groove of aluminum template.
3. Milling one notch at a time makes positioning convenient and flexible.
4. The gas-liquid conversion cylinder pushes the feed, which is fast and stable.
5. Adjustable milling width and depth, strong applicability.
6. Cylinder compaction material.
Main parameters of equipment
|
NO |
Name |
Numerical value |
|
1 |
Total power |
2.2KW |
|
2 |
Voltage |
380V/415V |
|
3 |
Number of cutter bits |
1 |
|
4 |
Milling groove width |
36mm,38mm,40mm |
|
5 |
Milling groove depth |
≤10mm± 0.2mm |
|
6 |
Maximum machining length |
350~3200mm |
|
7 |
Milling stroke |
120mm |
|
8 |
Overall dimension |
L×W×H=1050×1050×1500 |
|
9 |
Equipment weight |
600kg |
