Other Supporting Equipment

Our Other Supporting Equipment range includes multi-station punching machines, hydraulic punching machines, double-column hydraulic punch presses, JF21 series punching machines, and general-purpose power presses. Different models offer specific pressure capacities, stroke specifications, working table dimensions, and tooling configurations for metal processing applications, including aluminum formwork punching and long-material processing.




Supporting Equipment Range

Equipment Main Processing Application Key Configuration
Multi-Station Punching Machine Long-pipe punching for climbing frames and guardrails Automatic feeding and automatic punching
5-Station Hydraulic Punching Machine Long-material processing for sanitary ware and doors and windows Five-station hydraulic punching machine
Double-Column Hydraulic Punch Press Long-material processing for doors, windows, and sanitary ware Multiple sets of dies can be installed on the working table
Aluminum Formwork Hydraulic Punching Machine Through-wall bolt hole punching in aluminum formwork 1–5 holes per operation
JF21 Series Punching Machine Model-based punching applications Seven models, 250–1600 KN
General Purpose Power Press General metal stamping and pressing applications Six models, 250–1250 KN

Hydraulic and Metal Punching Machine Specifications

Multi-Station Punching Machine

Designed for long-pipe processing in climbing frame and guardrail applications, this machine features automatic feeding and automatic punching. Different series of punching dies can be configured.

Parameter Specification
Nominal Pressure 200 KN
Cylinder Diameter 125 mm
Cylinder Stroke 120 mm
Maximum Processing Length 6000 mm
Working Voltage 380 V
Main Motor Power 11 kW
Servo Motor Power 1.5 kW

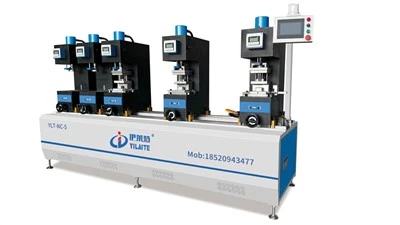

5-Station Hydraulic Punching Machine

Designed for long-material processing in sanitary ware and door and window applications, this machine supports different series of punching dies.

Parameter Specification
Nominal Pressure 50 KN
Independent Working Table 250 × 180 mm
Cylinder Stroke 75 mm
Die Closing Height 145–220 mm
Working Table Height from Ground 1000 mm
Working Voltage 380 V
Motor Power 5.5 kW
Machine Dimensions 2900 × 760 × 1800 mm

Double-Column Hydraulic Punch Press

The working table accommodates multiple sets of dies for simultaneous processing. This configuration is suitable for long-material processing in door, window, and sanitary ware applications.

Parameter Specification
Nominal Pressure 150 KN
Independent Working Table 1520 × 420 mm
Cylinder Stroke 50 mm
Die Closing Height 150–290 mm
Working Table Height from Ground 880 mm
Working Voltage 380 V
Motor Power 4 kW
Machine Dimensions 1520 × 600 × 1400 mm

Aluminum Formwork Hydraulic Punching Machine

Designed for punching through-wall bolt holes in aluminum formwork, this machine can process 1–5 holes in one operation. It uses digital display positioning, and the punching diameter is customizable.

Parameter Specification
Nominal Pressure 100 KN
Holes per Operation 1–5
Punching Diameter 20 mm, customizable
Single Punching Stroke Time Approximately 4 seconds
Slider Stroke 85 mm
Punching Stroke 20 mm
Die Working Surface Height from Ground 900 mm
Working Voltage 380 V
Motor Power 7.5 kW
Machine Weight Approximately 2000 kg

JF21 Series Punching Machine

The product listed as a Pneumatic Punching Machine on the product page provides seven JF21 series models with different nominal pressures, slider strokes, operating speeds, and maximum die heights.

Model Nominal Pressure (KN) Slider Stroke (mm) Strokes per Minute Maximum Die Height (mm) Motor Power (kW)
JF21-25T 250 80 100 250 4
JF21-45T 450 100 80 270 5.5
JF21-63T 630 120 70 300 5.5
JF21-80T 800 140 60 320 7.5
JF21-110T 1100 160 50 350 11
JF21-125T 1250 160 50 350 11
JF21-160T 1600 160 40 350 15

Additional model-dependent specifications include slider bottom dimensions, working table dimensions, column spacing, die shank hole dimensions, machine dimensions, and machine weight.

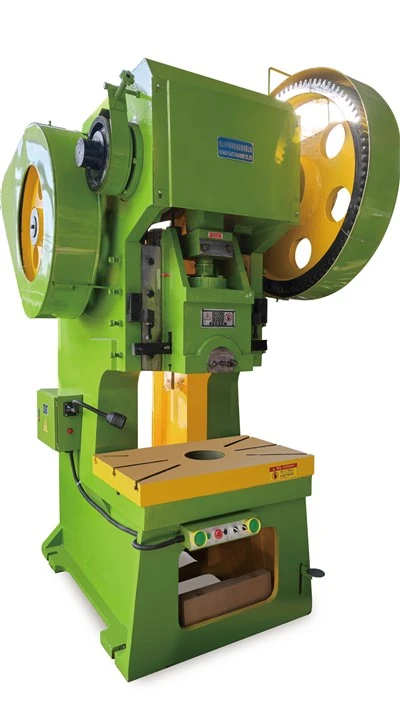

General Purpose Power Press

Our general-purpose power press range includes six models with different nominal pressures, slider strokes, operating speeds, and maximum closing heights.

Model Nominal Pressure (KN) Slider Stroke (mm) Strokes per Minute Maximum Closing Height (mm)
JB23-25T 250 70 70 220
JB23-40T 400 100 50 230
J23-63T 630 100 55 240
J23-80T 800 120 40 270
J21-100T 1000 130 50 310
J21-125T 1250 130 40 300

Other model-dependent specifications include:

The J21-100T weighs approximately 5100 kg, while the J21-125T weighs approximately 7500 kg.

Punching Machine Tooling and Customization

Different tooling configurations are available across the equipment range.

For aluminum formwork punching requirements, provide the required hole diameter and processing specifications for equipment configuration evaluation.

Machinery Manufacturing and Supply Capabilities

We integrate equipment research and development, engineering design, manufacturing, sales, and service. Our product range covers aluminum alloy formwork machinery, high-strength alloy steel formwork machinery, customized non-standard equipment, automated production line equipment, and hardware molds.

Our manufacturing and supply capabilities include:

Request a Metal Punching Machine Quote

Send us your workpiece specifications, processing drawings, or sample photos to request a suitable machine configuration and quotation.

Include the material, workpiece dimensions, required hole diameter and spacing, number of holes per operation, and estimated production quantity if available. We will review your processing requirements and recommend the relevant supporting equipment.
