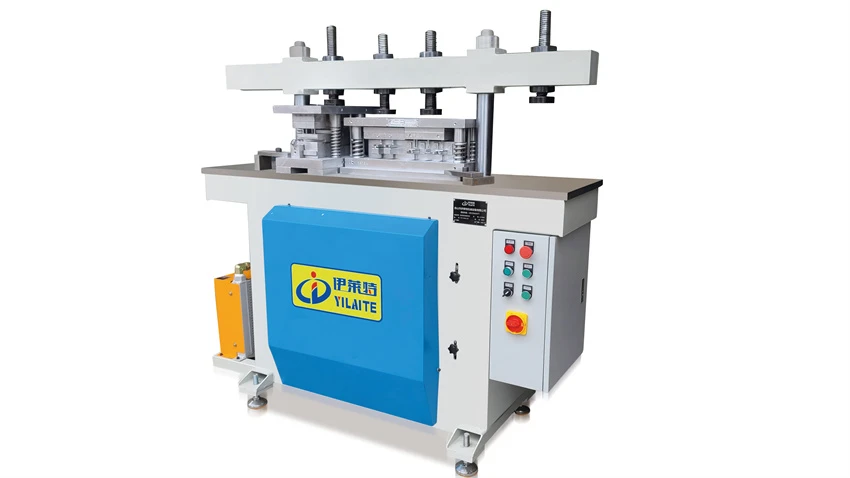

Double-Column Hydraulic Punch Press
This machine is suitable for industries such as doors and windows and bathroom fixtures. Multiple sets of molds can be installed on the worktable for simultaneous processing, and long materials can also be processed in one go. Compared with traditional processing methods, it is more efficient.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of double-column hydraulic punch press in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced double-column hydraulic punch press from our factory.
This machine is suitable for industries such as doors and windows and bathroom fixtures. Multiple sets of molds can be installed on the worktable for simultaneous processing, and long materials can also be processed in one go. Compared with traditional processing methods, it is more efficient.
Main Technical Parameters
|
No. |
Parameter |
Specification |
|
1 |
Nominal Pressure |
150KN |
|
2 |
Independent Worktable Size |
1520mm*420mm |
|
3 |
Cylinder Stroke |
50mm |
|
4 |
Die Height (Shut Height) |
150~290mm |
|
5 |
Worktable Height from Ground |
880mm |
|
6 |
Working Voltage |
380V |
|
7 |
Motor Power |
4kW |
|
8 |
Overall Dimensions (L×W×H) |
1520*600*1400mm |
