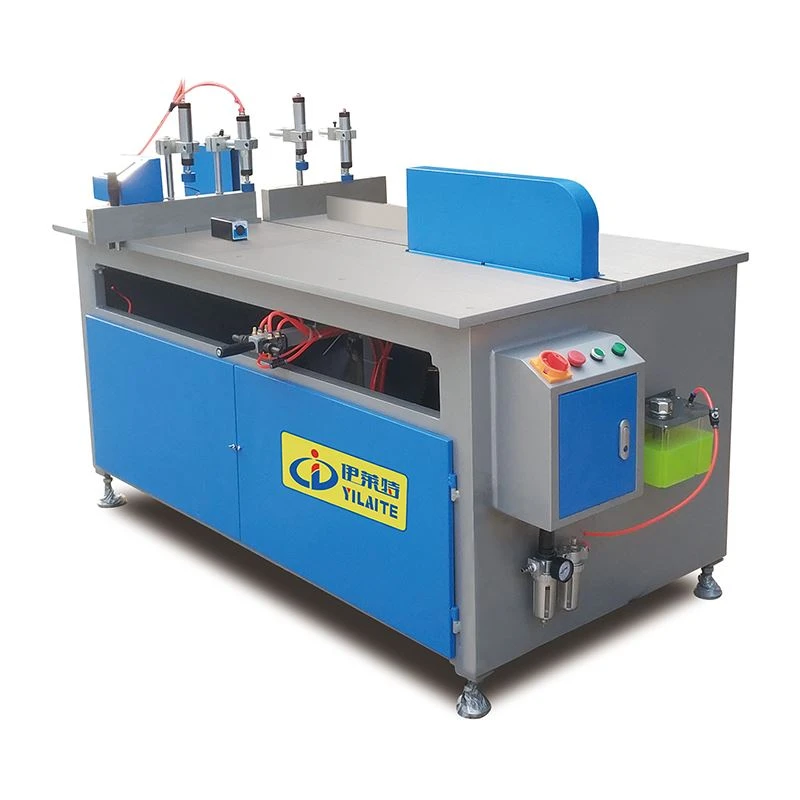

Manual Push-Type Cutting Machine

Manual Push-Type Cutting Machine

4kW direct-output motor.
Schneider low-voltage electrical components.
KBS linear bearings.
Imported saw blades.

  • Product Introduction

Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of manual push-type cutting machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced manual push-type cutting machine from our factory.





Product Configuration

4kW direct-output motor.

Schneider low-voltage electrical components.

KBS linear bearings.

Imported saw blades.

Pneumatic components from Taiwan AirTAC and joint venture JELPC.

CE standard 24V control circuit.

01b74b67-e42f-4e40-a68a-035b2a8e3aad



Product Advantages and Features



Direct 4KW motor output for smooth starting.

Capable of cutting extra-large sections at various angles.



Main technical parameters



No.

Parameter

Specification

1

Worktable Area (L×W)

1860×960mm

2

Saw Blade Vertical Adjustment Height

210mm

3

Worktable Fence Adjustable Angle

(-15° ~ 90° ~ +15°)

4

Max. Saw Blade Size

600×4.4×38×144T

5

Max. Section Size of Processed Profile (W×H)

560×210mm

6

Motor Speed

2850r/min

7

Motor Power

N=4kW

8

Working Air Pressure

0.6~0.8MPa

9

Overall Dimensions (L×W×H)

1980×1220×1280mm

10

Machine Weight

700kg
