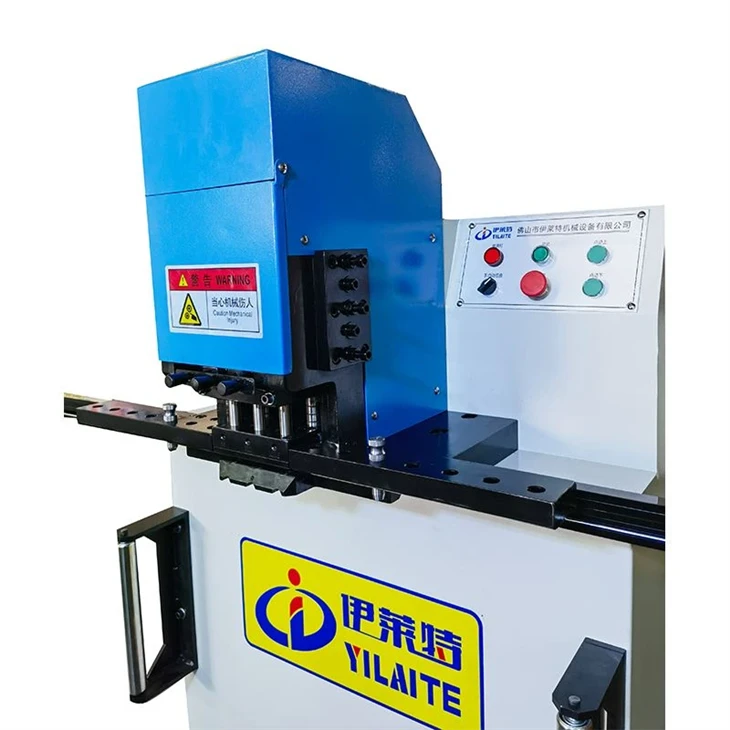

Three-Hole Hydraulic Punching Machine

This equipment is suitable for punching holes in U-shaped plates and C-grooves of aluminum formwork after welding. It can punch 1-3 holes simultaneously, and the punches do not need to be disassembled.

  • Product Introduction

Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of three-hole hydraulic punching machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced three-hole hydraulic punching machine from our factory.





Product Advantages and Features

It can process C-grooves ranging from a minimum of 100*100mm to a maximum of 150*200mm. The U-shaped plate processing range is 50-600mm.

It can punch holes with a minimum distance of 25mm from the center of the hole to the reinforcing edge.

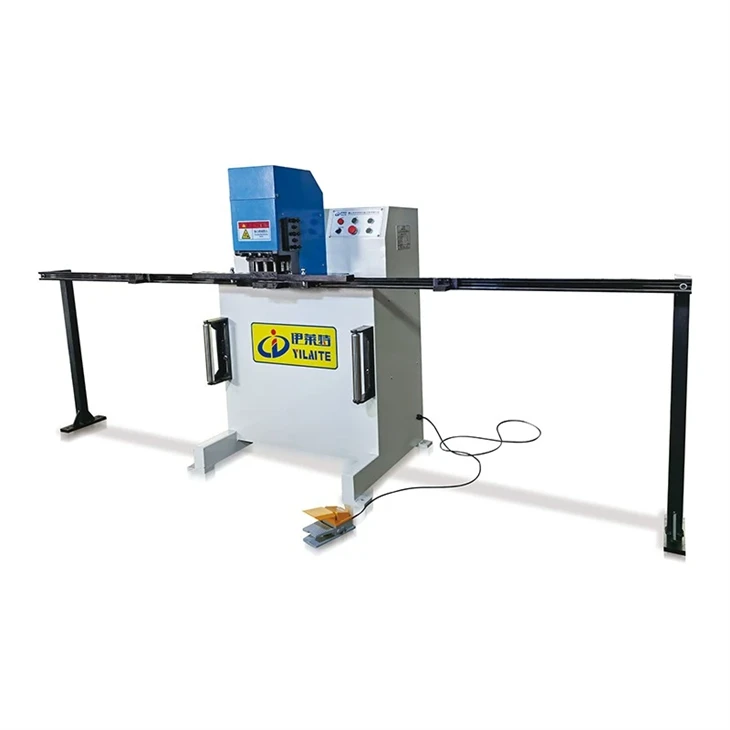

The equipment is equipped with double-ended material supports, a side material support device, 50mm hole spacing positioning, and 50mm fixed head positioning, making operation flexible and convenient.

Patented product, an industry first.

3c46b2df-b397-43cb-973e-21cf49dbb4d0



Main technical parameters



No.

Parameter

Specification

1

Model

YLT-12T-3

2

Nominal Pressure

120KN

3

Working Voltage

380V

4

Motor Power

4kW

5

Punching Stroke

35mm

6

Punching Diameter

16.5mm (Customizable)

7

Die Surface Height from Floor

975mm

8

Overall Dimensions (LWH)

10007901500mm

9

Machine Weight

Approx. 420kg
