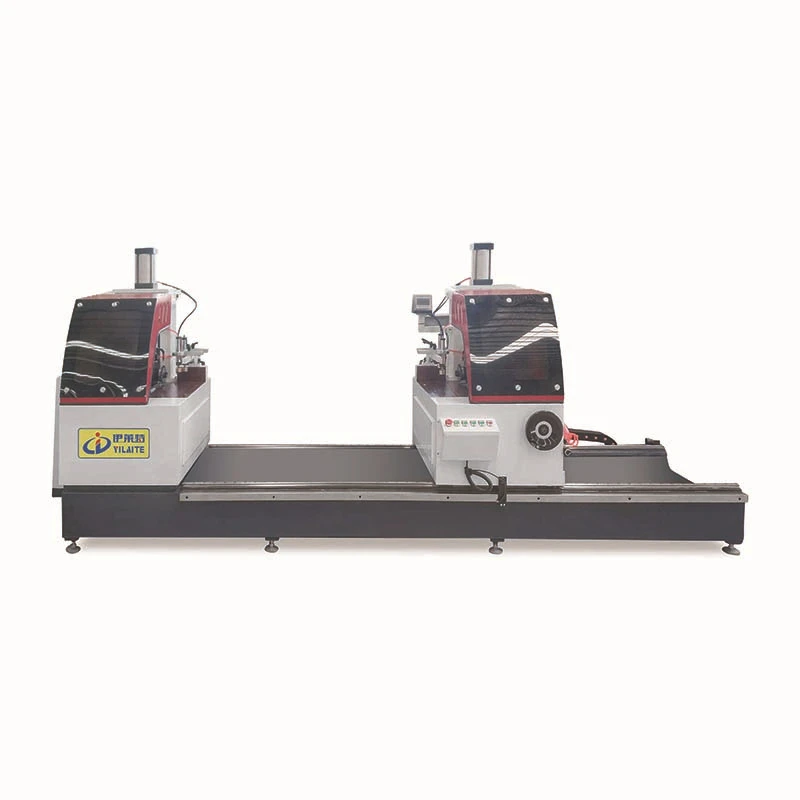

CNC Dual-Head End Milling Machine

CNC Dual-Head End Milling Machine

This equipment is suitable for milling the reinforcing bars at both ends of the inner sealing plate of aluminum formwork.

  • Product Introduction

Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of cnc dual-head end milling machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced cnc dual-head end milling machine from our factory.





This equipment is suitable for milling the reinforcing bars at both ends of the inner sealing plate of aluminum formwork.

5



Main technical parameters



No.

Parameter

Specification

1

Input Power Supply

380V 50Hz

2

Motor Power

8kW

3

Working Air Pressure

0.7–0.8MPa

4

Motor Speed

2800r/min

5

Spindle Diameter

Φ30mm

6

Milling Cutter Diameter

Φ120mm (Optional)

7

Installable Cutter Thickness

6–12mm

8

Feed Stroke

0–300mm

9

Machinable Profile Width

200–600mm

10

Machinable Profile Length

400–3000mm

11

Max. Milling Rib Height

65mm
