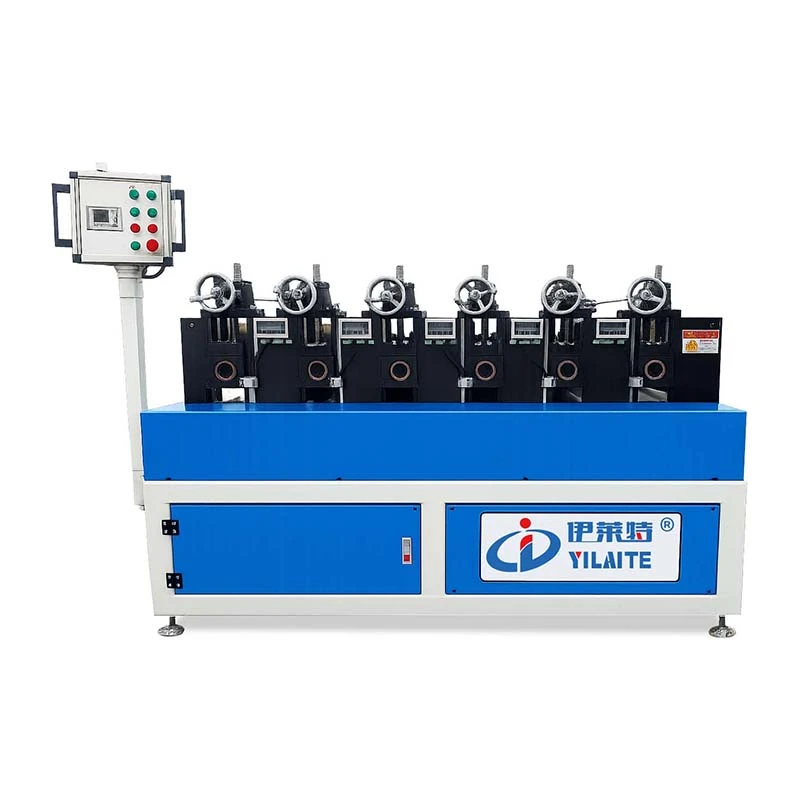

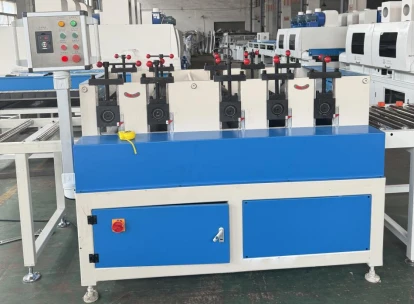

Aluminum Formwork Old Plate Straightening Machine
The machine features a total of 11 heavy-duty rollers: 5 on top and 6 on the bottom.
It utilizes a reinforced straightening roller design, offering high pressure and robust performance.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of aluminum formwork old plate straightening machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced aluminum formwork old plate straightening machine from our factory.
The machine features a total of 11 heavy-duty rollers: 5 on top and 6 on the bottom.
It utilizes a reinforced straightening roller design, offering high pressure and robust performance.
High-strength bearings are used to ensure durability.
1. The side plates are manufactured using integrated CNC machining, ensuring high precision and stable performance.
2. Operating speed is approximately 4–8 meters per minute, adjustable via VFD.
3. The straightening rollers feature a specialized layout for high efficiency and superior performance.
4. Digital display of the top straightening roller height ensures greater accuracy and rapid adjustment.
5. Adjusting for different panel widths is simple and convenient.
6. The final two rollers feature independent adjustment at both ends, offering greater flexibility when handling different panels.
Power Supply: 380V/50Hz
Input Power: 4.0 kW
Processing Range: Width: 100–600 mm; Length: 1000 mm
Processing Speed: VFD adjustable (4.0–8.0 m/min)
Dimensions: 1700 x 1000 x 1200 mm (excluding the feeding rack)
