Double-Side Multi-Head Grooving Machine

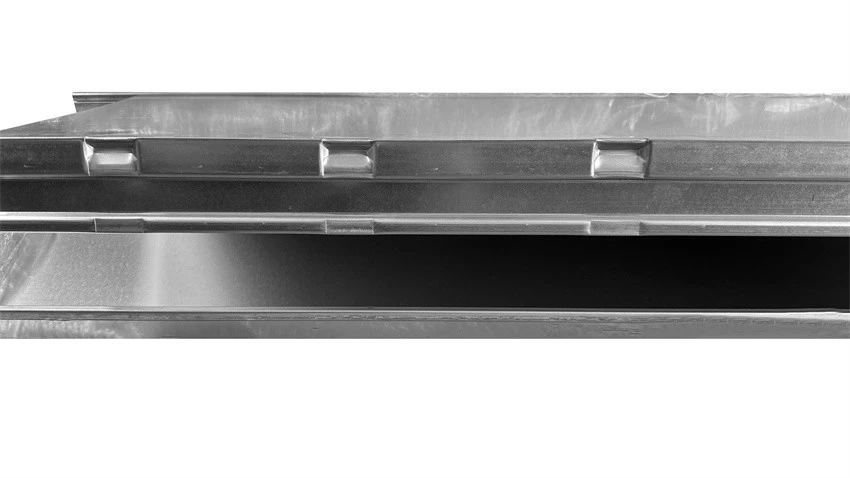

The equipment is suitable for processing pull tab slots on 100-500 steel templates, and can simultaneously process 1-12 pull tab slots. The maximum distance between the first and last pull tab slots is 2700mm.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of double-side multi-head grooving machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced double-side multi-head grooving machine from our factory.
Scope of Application
The equipment is suitable for processing pull tab slots on 100-500 steel templates, and can simultaneously process 1-12 pull tab slots. The maximum distance between the first and last pull tab slots is 2700mm.
The positioning size can be adjusted by a factor of 50.
Efficiency: It takes about 4 seconds for all 6 heads on one side to fully open, and a total of 8 seconds for both sides to complete. The overall speed of the worker for material feeding and handling is about 30 seconds to process a product (depending on the worker's proficiency).
Suitable for all steel templates in the industry, different materials can be completed by changing the mold.

Main Technical Parameters
| Serial number | Name | Numerical value |
|---|---|---|
| 1 | Model | YLT-YC-3000/12 |
| 2 | Nominal Pressure | 250KN*12 |
| 3 | Working Voltage | 380V |
| 4 | Motor power | 11KW |
| 5 | Itinerary | 50mm |
| 6 | Pulling slot width | 36/40mm |
| 7 | Pull slot depth | 1.2~1.6mm (Customizable) |
| 8 | The height of the lower mold surface from the ground | 980mm |
| 9 | Dimensions (L * W * H) | 30001500980mm |
| 10 | Total weight | / |
