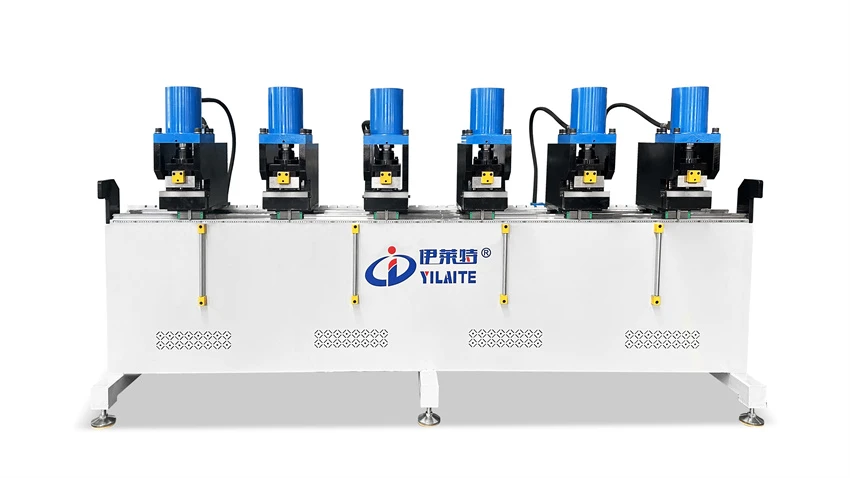

Single-Side Multi-Head Grooving Machine

Single-Side Multi-Head Grooving Machine

The equipment is suitable for processing 100~500 steel template pull groove, and can process 1~6 pull groove at the same time.

  • Product Introduction

Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of single-side multi-head grooving machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced single-side multi-head grooving machine from our factory.



Scope of Application



The equipment is suitable for processing 100~500 steel template pull groove, and can process 1~6 pull groove at the same time.
The positioning size can be adjusted by a factor of 50.
A single stroke takes about 4 seconds to complete.
Suitable for all steel templates in the industry, different materials can be completed by changing the mold.

product-850-478



Main Technical Parameters



Serial number Name Numerical value
1 Model YLT-YC-3000/6
2 Nominal Pressure 250KN*6
3 Working Voltage 380V
4 Motor power 15KW
5 Itinerary 50mm
6 Pulling slot width 36/40mm
7 Pull slot depth 1.5~1.8mm (Customizable)
8 The height of the lower mold surface from the ground 980mm
9 Dimensions (L * W * H) 30007501350mm
10 Total weight /
