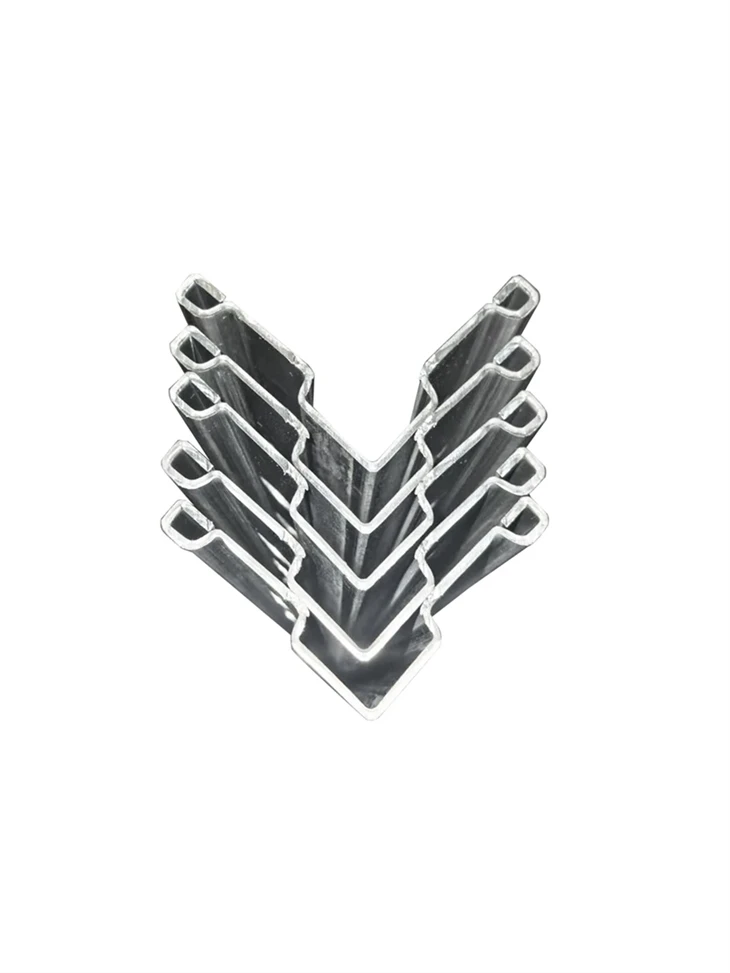

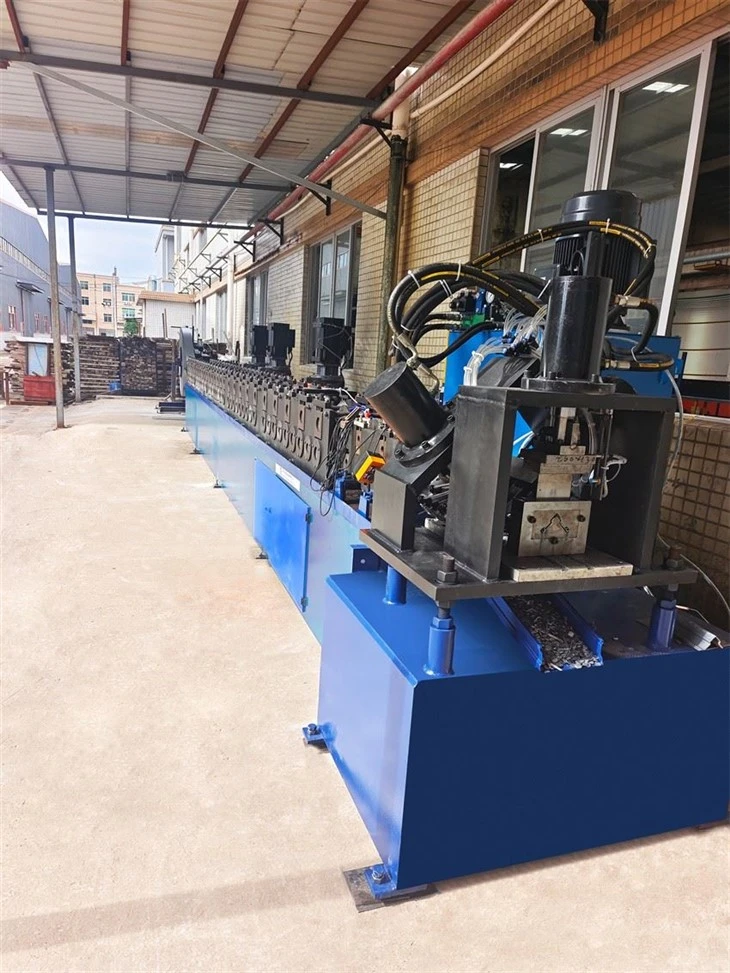

Steel Formwork Angle Steel Forming Machine
Equipment applicable raw material specifications and materials: Q700 high-strength steel coil material, thickness 1.0mm.
The specific dimensions of the production model shall be subject to the customer's drawings.
Choose material CR12MOV for the forming wheel.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of steel formwork angle steel forming machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced steel formwork angle steel forming machine from our factory.
Main Technical Parameters
| Product Material Material | High strength alloy steel plate |
| Product material thickness | 2.0mm |
| Product section error | According to the dimensions on the drawing |
| Product molding speed | 2~5m/min |
| length error | 0~-0.5/2.6米 |
| Total equipment power | 33KW |
| Equipment power consumption | AC 380V, 50HZ, three-phase |
| Power consumption control | AC 220V, 50HZ, single-phase |
| Expansion method | Manual expansion |
| load-bearing capacity | 2T |
| Unwinding motor | Unpowered |
| Inner diameter of coil material | 500-610mm |
| Blade thickness | Blade thickness 5mm |
| Total equipment power | 33KW |
| Equipment power consumption | AC 380V.50HZ. Three phase |
| Frequency converter | / |
| Other components | Schneider |
| PLC | Panasonic Japan |
| Touch screen | Taiwan Vinylon |
| Encoder | Japan's internal security control |
| Servo motor | Domestic |
| Note | 1. Punch 4 holes on the left and right of the the first mock examination |
| The rack adopts an integral structure | Square tube welding (8 * 80) with steel plates laid around and on the surface for gantry milling processing |
| Side panel | 25mm Q235 |
| Feed type | Using guide plates to guide materials |
| Number of formed rolling wheel sets | 27 sets+6-wheel straightening machinery |
| Forming roller material | CR12MOV |
| Roll processing | After vacuum heat treatment of the rolling mill rolls, Solidworks/Mastercam integrated technology and CNC lathe precision machining are used to ensure that the machining accuracy of the rolling mill rolls is within ± 0.02mm. The inner holes of the main rolling mill rolls are precision ground, and the machining accuracy is within ± 0.02mm |
| Spindle | Φ68mm quenching and tempering treatment |
| Main shaft bearings (each side plate) | 6310 |
| Main engine power | 2 11KW servo motors, high-precision reducer |
| Main engine transmission system | The transmission is connected to the linked gear through the cycloidal pin reduction gearbox sprocket by the motor, which drives the rolling mill to rotate synchronously |
| Hydraulic motor power | Cut off 11KW |
| Cut off method | Shutdown, hydraulic cut-off |
