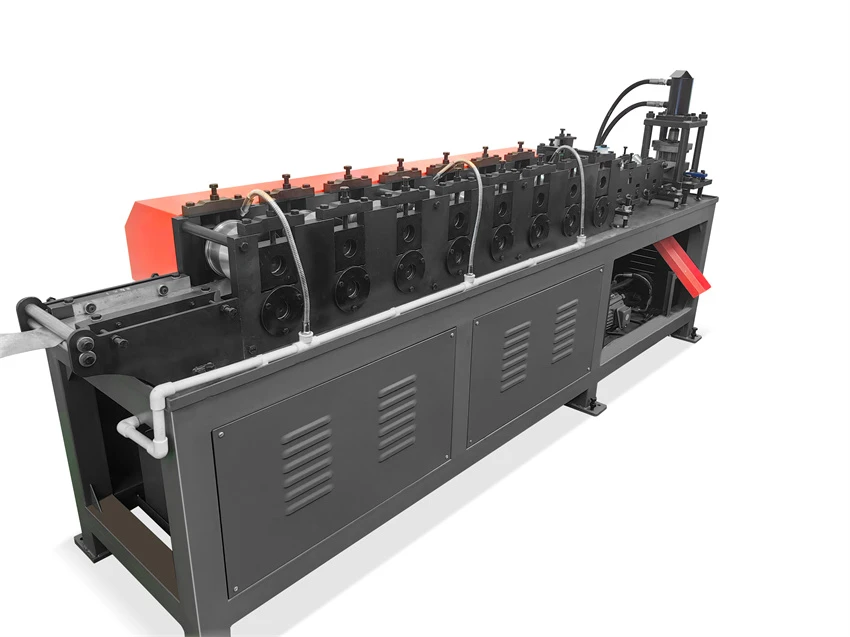

Triangular Stiffener Roll Forming Machine
Equipment applicable raw material specifications and materials: galvanized coil material, thickness 1.0mm.
The specific dimensions of the production model shall be subject to the customer's drawings.
Choose material CR12MOV for the forming wheel.
- Product Introduction
Foshan Yilaite Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of triangular stiffener roll forming machine in China, also supports high quality customized service. With abundant experience, we warmly welcome you to buy advanced triangular stiffener roll forming machine from our factory.
Device Function
Equipment applicable raw material specifications and materials: galvanized coil material, thickness 1.0mm.
The specific dimensions of the production model shall be subject to the customer's drawings.
Choose material CR12MOV for the forming wheel.
The equipment is equipped with a human-machine interface operating system, which can input production plans and output registration, and the length parameters can be adjusted.
Operating instructions: The coil material is manually lifted onto the upper material rack, and the material is manually guided into the forming machine and fed into the cutting die. After selecting the automatic mode, the work button switch is activated.
Equipment Parameters
| Item | Specification |
|---|---|
| Inner hole diameter | 460~520mm |
| Material width | 200mm |
| Load weight | 1000kg |
| Quantity | 1 piece |
| Using manual expansion core | Using manual expansion core |
| No power transmission | No power transmission, with brake system |
| Applicable materials | galvanized high-strength coil material |
| Material thickness | 1.0mm |
| Total power of main motor | 5.5kW |
| Forming speed | 0-12m/min (excluding cutting) |
| Number of molding groups | 8, straightening 5 |
| Forming roller material | CR12MOV |
| Roll heat treatment hardness | HRC57 ° -59 ° |
| Precision machining | Precision machining of inner and outer diameters after heat treatment of rolling mill |
| Shaft diameter and material | ￠48mm, 45# steel, finely ground outer circle after quenching and tempering |
| Main bearing | 6208 |
| Wall style plywood thickness | 30mm |
| Transmission mode | chain, gear transmission |
| Machine structure | The machine adopts 100 * 80 square tube welding and flat plate processing |
| Forming mechanical dimensions | approximately L * W * H 4m * 0.8m * 1.2m |
| Net weight of the machine | approximately 2 tons |
| Voltage | 380V/3phase/50 Hz |
| Hydraulic system | One set of hydraulic system, hydraulic motor 4KW, one workstation oil cylinder |
| Waste cutting molds | 1 set of waste cutting molds |
| Mold material | CR12MOV |
| Processing hardness | HRC60 ° -62 ° |
| Cutting method | Using onli |
